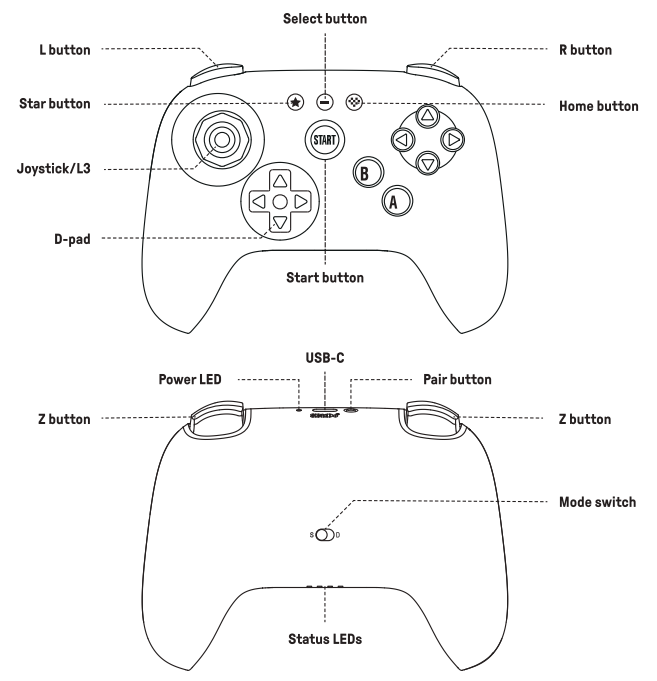

Button Layout

Button Layout

1. Battery information

1) Battery capacity: 1000mAh.

2) Charging time: About 4 hours.

3) Battery life: About 36 hours.

2. How to turn off the controller?

1) Press and hold the Home button for 3 seconds to turn off.

2) Press and hold the Home button for 8 seconds to force turn off.

3) If the device is not connected after powering on, it will automatically turn off after 1 minute.

4) It will automatically turn off after 15 minutes of no operation.

5) It cannot be turn off when connected by a wire, and it will not turn off automatically as well.

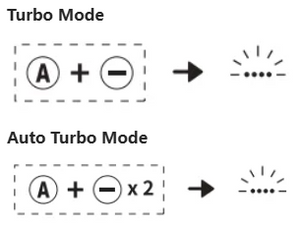

3. How do I configure Turbo modes on this controller and what are the limitations?

⚠️ Limitations:

1) D-pad, Joystick/L3, Home, Select, and Start buttons are not supported for turbo.

2) Settings revert to default after power-off/disconnect.

3) Status LEDs blink continuously when configured button is pressed.



🎮 Configuration:

① Enable Turbo:

Hold target button→ Press Select button once→ Status LEDs blink continuously

② Disable Turbo:

Hold target button→ Press Select button once→ Status LEDs stop blinking

③ Enable Auto Turbo:

Hold target button→ Double-press Select button→ Status LEDs blink continuously

④ Disable Auto Turbo:

Hold target button→ Press Select button once→ Status LEDs stop blinking

3. How do I configure Turbo modes on this controller and what are the limitations?

4. How do I configure Fast Button Swap and what are the limitations?

⚠️ Limitations:

1) D-pad, Joystick/L3, Home, Select, and Start buttons cannot be swapped.

2) Settings revert to default after power-off/disconnect.

3) Status LEDs blink continuously when swapped function is active.



🎮 Configuration:

① Enable Button Swap:

Hold both target buttons→ Press Select button once→

(Status LEDs blink continuously)

② Disable Button Swap:

Hold both swapped buttons→ Press Select button once→

(Status LEDs stop blinking)

4. How do I configure Fast Button Swap and what are the limitations?
×
